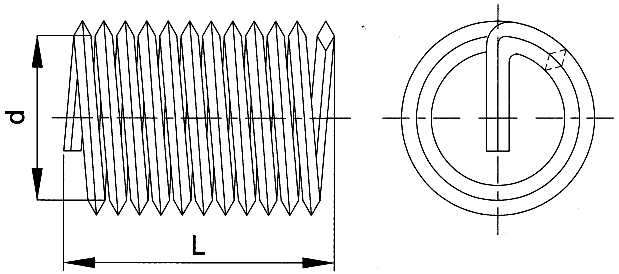

公制线状螺纹塞

DIN 8140-1A
技术参数

d (nom.)             P                 Drill ø

d (nom.)             P                Drill ø

d (nom.)             P                 Drill ø

M3                       0,5              3,2

M8                       1,25           8,4

M18                     2,5              18,75

M4                       0,7              4,2

M10                     1,5             10,5

M20                     2,5              20,75

M5                       0,8              5,2

M12                     1,75           12,5

M22                     2,5              22,75

M6                       1                 6,3

M14                     2                 14,5

M24                     3                 24,75

M7                       1                 7,3

M16                     2               16,5

M27                     3                 27,75

产品种类

Thread    Material     Colour                                                      Brand                Packaging          Code

M               St.St.A2                                                                  AMECOIL             Standard                 71110

M               St.St. A2        Red                  prevailing torque type     AMECOIL            Standard            71210
