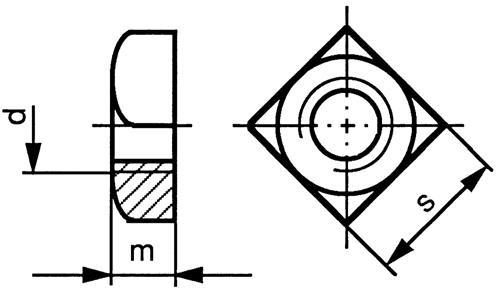

d
P
m (h15)
s
M4 (≠DIN)
0,7
3,2
7
M5
0,8
4
8
M6
1
5
10
M8
1,25
6,5
13
M10
1,5
16
M12
1,75
19
Thread
Driving features
Material
Class
Surface treatment
Packaging
Code
Page
M
square head
St
≥5
Standard
11120
3-107
Zipl
11140
