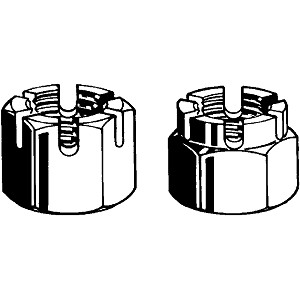

公制细牙开槽六角螺母

DIN 935
NEN 729

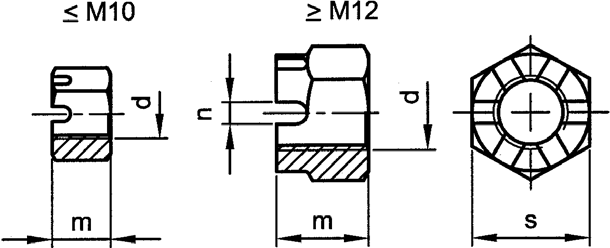

技术参数

d

m        s                     n                Number of slots   Split pin DIN94

M8

9,5      13                   2,5                         6                     2x16

M10

12       17 (16)           2,8                         6                     2,5x20

M12

15       19 (18)           3,5                         6                     3,2x22

M14

16       22 (21)           3,5                         6                     3,2x25

M16

19       24                   4,5                         6                     4x28

M18

21       27                   4,5                         6                     4x32

M20

22       30                   4,5                         6                     4x36

M22

26       32 (34)           5,5                         6                     5x36

M24

27       36                   5,5                         6                     5x40

M27

30       41                   5,5                         6                     5x45

M30

33       46                   7                            6                     6,3x50

M36

38       55                   7                            6                     6,3x63

M42

46       65                   9                            8                     8x71

M 56

57     85         9              8           8x100

产品种类

Thread                                 Driving features                  Material              Class       Packaging    Code

MF                                         hexagon                                  St                          4               Standard       12020
