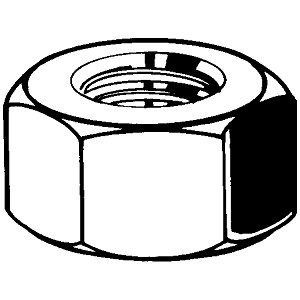

公制细牙六角螺母 |
|
 |
|
DIN 934(1987) NEN 1560 NF E25-401 |
 |
|
|
技术参数 |
d | m | s | M4 (≠DIN) | 3,2 | 7 | M5 (≠DIN) | 4 | 8 | M6 (≠DIN) | 5 | 10 | M8 | 6,5 | 13 | M10 | 8 | 17 | M12 (≠DIN) | 10 | 19 | M12 | 10 | 19 | M14 | 11 | 22 | M16 | 13 | 24 | M18 (≠DIN) | 15 | 27 | M18 | 15 | 27 | M20 | 16 | 30 | M22 (≠DIN) | 18 | 32 | M22 | 18 | 32 | M24 (≠DIN) | 19 | 36 | M24 | 19 | 36 | M26 (≠DIN) | 22 | 41 | M27 (≠DIN) | 22 | 41 | M27 | 22 | 41 | M28 (≠DIN) | 22 | 41 | M30 (≠DIN) | 24 | 46 | M30 | 24 | 46 | M32 (≠DIN) | 26 | 50 | M33 (≠DIN) | 26 | 50 | M33 | 26 | 50 | M36 (≠DIN) | 29 | 55 | M36 | 29 | 55 | M38 (≠DIN) | 31 | 60 | M39 | 31 | 60 | M40 (≠DIN) | 31 | 60 | M40 (≠DIN) | 31 | 60 | M42 | 34 | 65 | M45 (≠DIN) | 36 | 70 | M45 | 36 | 70 | M48 (≠DIN) | 38 | 75 | M48 | 38 | 75 | M52 (≠DIN) | 42 | 80 | M52 | 42 | 80 | M56 (≠DIN) | 45 | 85 | M56 | 45 | 85 | M60 (≠DIN) | 48 | 90 | M60 | 48 | 90 | M64 | 51 | 95 | M68 | 54 | 100 |
|
产品种类 |
Thread | Driving features | Material | Class | Surface treatment | | Packaging | Code | Page | MF | hexagon | St | |8| | | | Standard | 01120 | 3-15 | MF | hexagon | St | |8| | | left hand | Standard | 01130 | 3-16 | MF | hexagon | St | |8| | Zipl | | Standard | 01330 | 3-16 | MF | hexagon | St | |8| | Zipl yell.p. | | Standard | 01340 | 3-16 | MF | hexagon | St | |10| | | | Standard | 04180 | 3-16 | MF | hexagon | Free-cutting steel | |6| | | left hand | Standard | 11007 | 3-17 | MF | hexagon | St.St. A2 | 70 | | | Standard | 51160 | 3-17 | MF | hexagon | St.St. A4 | 70 | | | Standard | 55160 | 3-17 |
|
