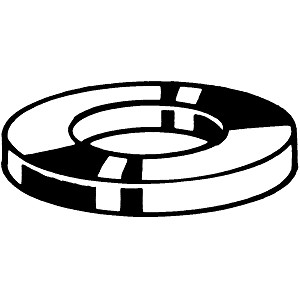

销钉用垫圈2

DIN 1441
技术参数

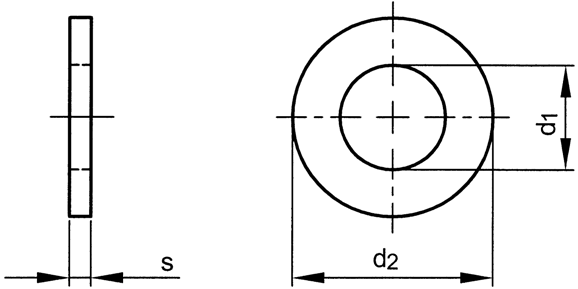

For pin ø          d1            d2           s

For pin ø          d1            d2           s

For pin ø          d1            d2           s

5                        5,5          10           0,8

20                     21           32           4

36                     37           52           6

6                        7              12           1,6

22                     23           34           4

40                     41           58           6

7                        8              14           1,6

23                     24           36           4

50                     51           68           8

8                        9              16           2

24                     25           38           4

60                     62           80           9

10                     11           20           2,5

25                     26           40           4

70                     72           95           10

12                     13           25           3

26                     27           40           5

75                     78           100         10

14                     15           28           3

28                     29           42           5

80                     82           110         12

16                     17           28           3

18                     19           30           4

产品种类

Material                                                                                                                                    Packaging   Code

St                                                                                                                                                Standard        38958
