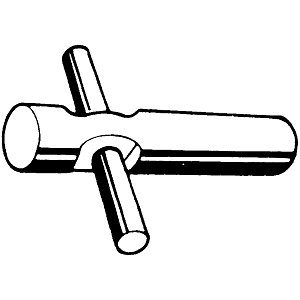

Insert with anchor bar

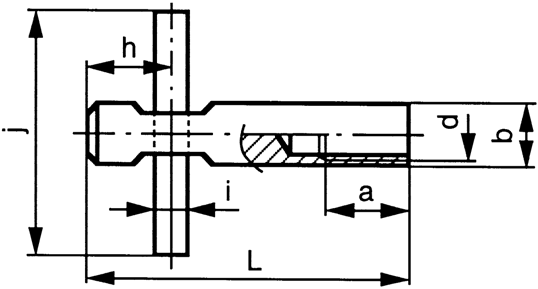

技术参数

d

M12

M12

M16

M16

M20

a

24

24

30

32

35

b

16

16

21

21

26

h

15

18,5

21

29

24

i

9

9

10

10

12

j

50

50

80

80

80

Pull-out force in kN

Concrete

24

28

36

52

56

产品种类

Thread

Material

Surface treatment

Packaging

Code

Page

M

St

Zipl

Standard

18240

8-78

M

St.St.

1074 A

Standard

18390

8-78
