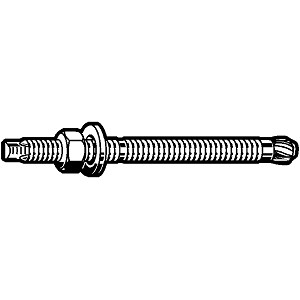

Anchor threaded stud Maxima

技术参数

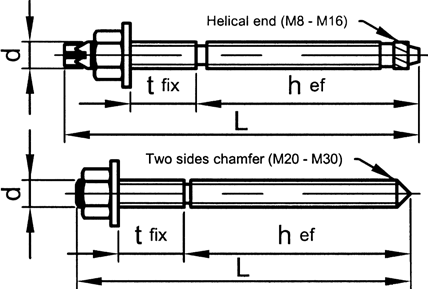

Type

M8

M10

M12

M16

M20

M24

M30

D

M8

M10

M12

M16

M20

M24

M30

L

105

128

155

183

260

300

380

Nominal diameter of drill bit (do)

10

12

14

18

25

28

35

Tightening torque in Nm

10

20

30

60

120

200

400

Diameter of clearance hole in the fixture (df)

9

12

14

18

22

26

33

Minimal thickness of concete member (hmin.)

110

120

150

160

220

300

350

Depth of drilled hole to deepest point (homin.-homax.)

80

90

110

125

170

210

280

Thickness of the fixture (tfix.max.-tfix.min.)

15

25

30

40

68

64

70

Effective anchorage depth (hef.min.-hef.max.)

80

90

110

125

170

210

280

Spacing (Scr, N), characteristic

160

180

220

250

340

420

560

Edge distance (Ccr, N), characteristic

80

90

110

125

170

210

280

Minimal spacing (Smin.)

40

45

55

65

85

105

140

Minimal edge distance (Cmin.)

40

45

55

65

85

105

140

Allowable load in kN

5,3

8,3

13,2

19,8

36,9

38

46,3

产品种类

Thread

Material

Surface treatment

Packaging

Code

Page

M

St

Zipl

Standard

70636

8-61

M

St.St. A4

Standard

70646

8-61
