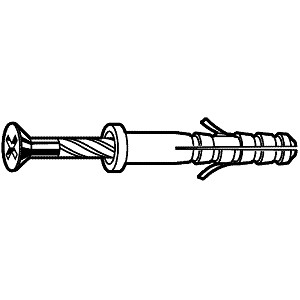

Type | N6x40 FZ | N8x40 FZ | d | 6 | 8 | L | 40 | 40 | dk Nail dimension | 13 4x48 | 20 5x45 | Drill ø | 6 | 8 | Drill depth (min.) | 55 | 55 | Grip range (max.) | 7 | 0,5 | Pull-out force in kN |
|
| Concrete B25 | 1,4 | 1,9 | Brick Mz12 | 1,2 | 1,7 | Pumice grit V4 | 0,8 | 0,9 | Sandlime brick KS12 | 1,2 | 1,7 | Cellular concrete G2 | 0,25 | 0,5 | Cellular concrete G4 | 0,65 | 0,8 |
|
