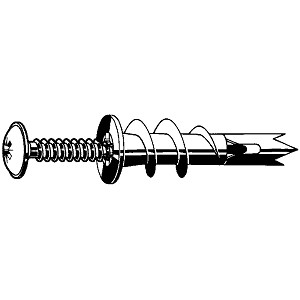

Self-drilling anchor for plasterboard

技术参数

Type

TP 12

TP 12-PLUS

TP 27

TP 30-PLUS

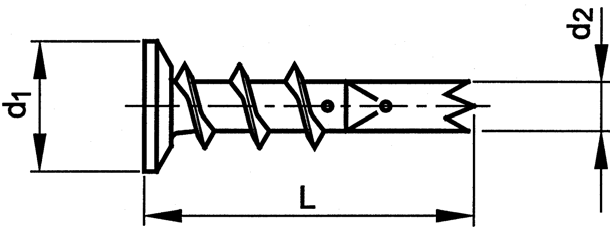

L

31

39

31

39

d1

13

10,5

13

10,5

d2

Grip range

6

0-12

15,5

0-12

6

12-27

15,5

5-30

Material thickness (min.)

10

10-13

10

10-13

Screw size

4,5x35

4,5x45

4,5x50

4,5x60

No. Pozidriv (Z)

2

2

2

2

Assembly data

Pull-out force in N

300/400/350

600

300/400/350

600

Shear strength min. in N

900

1400

900

1400

Edge distance tensile in cm

2,5/2,5/3,5

-

2,5/2,5/3,5

-

Edge distance shear in cm

3,5/3,5/5

-

3,5/3,5/5

-

Distance between centrelines tensile in cm

3,5/3,5/5

-

3,5/3,5/5

-

Distance between centrelines shear in cm

4,5/4,5/7

-

4,5/4,5/7

-




产品种类

Material

Surface treatment

Packaging

Code

Page

Zamac 3

Zipl

Standard

70880

8-16

Zamac 3

Zipl

PLUS

Standard

70882

8-16
