Tube cap conical

技术参数

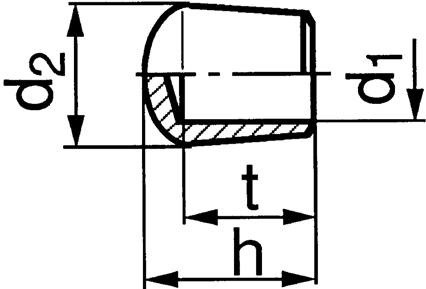

d1             d2              h                t

d1                 d2              h                t

d1             d2              h                t

3                5                10              8

22                 29              33              26

45             49              33              26

4                6                11              9

24                 32              36              30

47             51              33              24

5                7                7,5             7

25                 30              31              24

48             53              33              28

6                8                13              10,5

26                 33              36              31

49             53              33              28

8                11              15              13

28                 32              30              24

50             53              33              24

10             15              18              14

30                 34              31              24

54             57              35              26

12             17              21              17

32                 36              33              25

59             63              38              27

13             17              20              16

34                38                 33            25

63             67              38              28

14             19              22              18

35                 39              33              25

69             73              38              28

16             21              24              20

38                 42              33              27

75             78              40              28

18             25              27              22

40                 44              33              24

90             95              45              31

19             24              24              19

42                46               33               27

103           106            40              35

20             27              30              24

产品种类

Material                                                           Colour                              Packaging    Code

Plastic PVC                                                      Black                                  Standard        56790
