公制六角头螺栓

ISO 4014
DIN 931
BS 1111
NEN 1555
ANSI B18.2.3.1M
NF E25-112

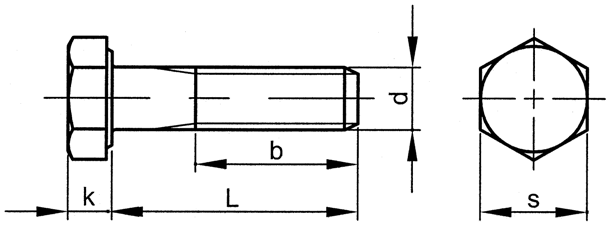

技术参数

d

P

b (min.): L≤125mm

b (min.): 125mm<L≤200mm

b (min.): L>200mm

k

s

M4

0,7

14

-

-

2,8

7

M5

0,8

16

22

-

3,5

8

M6

1

18

24

-

4

10

M7

1

20

26

-

4,8

11

M8

1,25

22

28

-

5,3

13

M10 (DIN)

1,5

26

32

45

6,4

17

M10

1,5

26

-

-

6,4

16

M12 (DIN)

1,75

30

36

49

7,5

19

M12

1,75

30

36

-

7,5

18

M14 (DIN)

2

34

40

53

8,8

22

M14

2

34

40

-

8,8

21

M16

2

38

44

57

10

24

M18

2,5

42

48

61

11,5

27

M20

2,5

46

52

65

12,5

30

M22 (DIN)

2,5

50

56

69

14

32

M22

2,5

50

56

69

14

34

M24

3

54

60

73

15

36

M27

3

60

66

79

17

41

M30

3,5

66

72

85

18,7

46

M33

3,5

72

78

91

21

50

M36

4

78

84

97

22,5

55

M39

4

84

90

103

25

60

M42

4,5

90

96

109

26

65

M45

4,5

96

102

115

28

70

M48

5

102

108

121

30

75

M52

5

-

116

119

33

80

M56

5,5

-

124

137

35

85

M60

5,5

-

132

145

38

90

M64

6

-

140

153

40

95



Size 'b' is a guide value, it amounts on the minimum length of the threaded part

产品种类

Thread

Driving features

Material

Class

Surface treatment

Colour

Packaging

Code

Page

M

hexagon

St

8.8

Standard

01000

1-3

M

hexagon

St

8.8

Zipl

Standard

01200

1-4

M

hexagon

St

8.8

Zipl yell.p.

Standard

01220

1-6

M

hexagon

St

8.8

Hot d.g.

iso metric

Standard

01400

1-7

M

hexagon

St

8.8

Hot d.g.

oversized

Standard

01420

1-8

M

hexagon

St

10.9

Standard

04100

1-8

M

hexagon

St

10.9

FLZNNC-NC6

Standard

04105

1-9

M

hexagon

St

8.8

FLZNNC-NC6

Standard

01226

1-10

M

hexagon

St

12.9

Standard

04108

1-10

M

hexagon

St

5.6

for pressure vessels

Standard

08750

1-11

M

hexagon

St.St. A2

70

Standard

51000

1-11

M

hexagon

St.St. A4

70

Standard

55000

1-13

M

hexagon

St.St. A4

80

Standard

53510

1-14

M

hexagon

St 24CrMo5

G

Standard

23010

1-15

M

hexagon

Plastic PA

PA 6.6

White

Standard

56090

1-15
