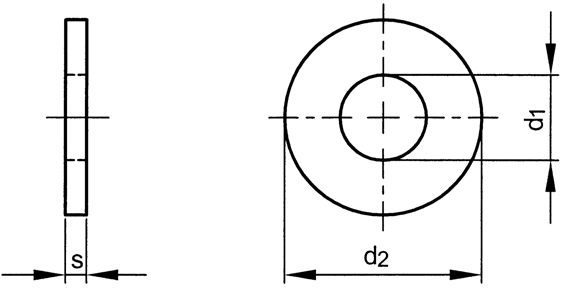

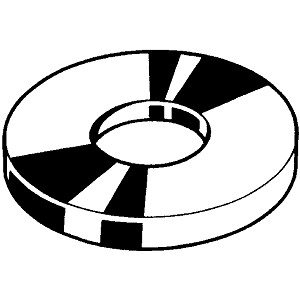

Washer for clamping devices |
|
|
|
DIN 6340 NF E25-518 |
|
|
|
技术参数 |
For nom.size M6 | d1 (H14) 6,4 | d2 (h14) 17 | s 3 | M8 | 8,4 | 23 | 4 | M10 | 10,5 | 28 | 4 | M12 | 13 | 35 | 5 | M14 (≠DIN) | 15 | 40 | 5 | M16 | 17 | 45 | 6 | M20 | 21 | 50 | 6 | M24 | 25 | 60 | 8 |
|
产品种类 |
Material | Packaging | Code | St 350+80 HV30 | Standard | 16205 |
|
