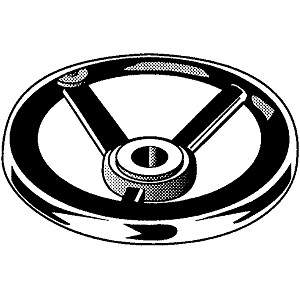

Handwheel AL

DIN 950

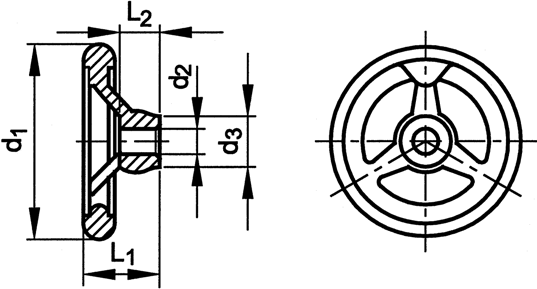

技术参数

d2 (H7) x d1

d3

L1 ≈

L2

Spokes

10x80

24

29

16

3

10x100

26

36

18

3

12x125

28

36

18

3

14x140

30

39

19

3

16x160

32

40

20

3

18x180 (≠DIN)

35

43

22

3

20x200 (≠DIN)

38

45

24

3

20x225 (≠DIN)

42

48

26

5

24x250 (≠DIN)

45

50

28

5

24x280 (≠DIN)

50

53

30

5

26x315

53

56

33

5

28x360 (≠DIN)

60

59

35

5

30x400

65

63

38

5

34x500

78

72

45

5

产品种类

Material                                                                                               Packaging      Code

Al                                                                                                             Standard        56940
