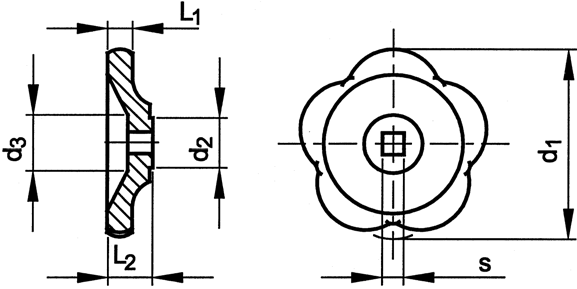

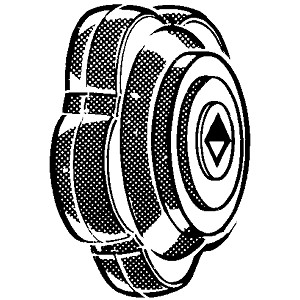

Handwheel with ripple ring

DIN 388-1C
技术参数

s (H11)

5x50 (≠DIN)

d2

22

d3

21

L1

12

L2

18

5x63 (≠DIN)

22

24

12

20

6x50 (≠DIN)

22

22

12

18

6x63 (≠DIN)

22

24

12

20

7x63

22

24

12

20

7x80 (≠DIN)

28

30

12

22

8x63 (≠DIN)

22

24

14

20

8x80

28

28

14

22

9x100

28

30

14

25

产品种类

Material

Class

Colour

Packaging

Code

Plastic PF

FS31

Black

Standard

56901
